Thanks to all for the info on the last 5.2. Post !! Saved me questions here. Just brought home a 77 .. Great shape but no up grades..
Q 1.. The jib zipper is missing a few (2) teeth and is soo stiff.. I think the slider is bad. Tried silicone.. Bit of help.. Slides down but get stuck when unzipping.. I am rather sure I can zip it all the way to the foot however.. ...I think I can fish the forestay in the pocket prior to setpping the mast. How about raising the mast with a trap line to keep the sail clear of that operation and attaching the chain plate to the forstay using the tention from the trap line... Found a new zipper at Elloits but the repair is a few bucks.. I would like to get her on the water prior to spending bucks on repairs. Thinking about a roller reef add on..
Q2.. I dont understand why the DS needs to be changed to use the larger mast ball?? I was going to get a new mast base cuz I trailer and like the captive feature.. I have a ball from a 6.0 that I just sold and it slips ober the DS post with just a tiney bit of slop.. Seems like it would work fine with a bit of epoxy.. Perhaps that is not needed becaust the preasure is more downward and not as much side to side.. The mast base alone is not 150$ acording to the Murrys cat..
Q3 Anyone got a pix of how the jib hallyard fastens at the base of the mast. I am used to the cleats on Hobies to secure that line.. On mine N. 5.2 the sheet is "tied" to the pulley that conects to the wire to raise the jib. Seems like that is wrong.. Where does that line anchor??
Q4.. Cant seem to find out how the "pivmatic" piece works on the tiller.. I Like the idea that it helps kick up over obstructions but not sure how it works. Forum folks all recomend adding it..
Q5.. Also confused about the trap lines. Going to solo a lot and cant seem to imagine a b. cord in the front x member working well.. How about aft where the tramp laces??
Q6.. The boat came with 3 (yes 3) new daggers. HOWEVER. they are thinner than the originals. The seem a bit sloppy in the wells?? Problem?? Also got to install bungi to hold them up..
Q Last. Righting line. My boat has the caps removed from the front x member and a piece of 3/8 line attached to a nut through the member with several hand holds. It stuffs in the x mamber till needed. Has one on each side. pull out as needed. Workable??
Thanks in advance. Love this forum
--
Hal Liske
Livermore CA
H 16 (6+ 1.. Friends) H 3.2 N 5.2 (2) H 17 (2) H-18
Nacra 5.8 (son's) H 20 (Friends)
It's a Sickness
I Need a A Cat Please
--
More 5.2 advice
Go to page 1 - 2 - 3 - 4 [+1]:
-
- Rank: Mate
- Registered: Aug 13, 2010
- Last visit: Mar 10, 2014
- Posts: 294
Posted: Feb 02, 2011 - 05:33 PM
-
- Rank: Mate
- Registered: Aug 22, 2007
- Last visit: Jan 07, 2015
- Posts: 742
Posted: Feb 02, 2011 - 08:34 PM
Q1. You'd probably best be served getting a new jib. 5.2 jibs are cheap, this time of year especially, and it never hurts to have a backup sail. That said, replacing the zipper should be cheap.
q2. I wouldn't epoxy a mast ball on -- they get worn quickly.
q3. That block should hang down the mast, and stop about 1-2 feet above a standard jam-cleat w/ becket. tie a line onto the becket, up through the block, back down through the cleat. Gives you a 2:1 on the jib, and the tension can be adjusted from the water (for upwind vs downwind, or high wind)
q4. search for pics, it'll be easy to figure out if you can see it
q5. the only problem running shock cord through the main beam is that it doesn't leave a whole lot of range of motion for the crew, compared to what you can acheive w/ the skippers trap/shock cord setup.
q6. add padding to the daggers? no idea here.
--
Rob
OKC
Pile of Nacra parts..
-- -
- Rank: Chief
- Registered: Nov 26, 2009
- Last visit: Aug 10, 2024
- Posts: 2531
Posted: Feb 03, 2011 - 05:57 AM
The pull down line on the rudder goes over a roller on the rudder pivot bolt, then along the arm through the jam cleat of the pivmatic. When the rudder hits, the jam cleat won't let the line slip, so the pivmatic breaks loose from the tiller arm, & pivots upwards via the pin at the end of the pivmatic.
Download the two NAcra manuals from this site. One is newer than your boat, but it shows the rudder assembly better than the older one. Go to Photo Albums/Technical Tips/pg 2 or this link. It will show two icons, select each one in turn. It will show thumbnails of each page. Go to the bottom & download the PDF file, that will give you the entire manual.
http://www.thebeachcats.c…ictures/?g2_itemId=35212
Edited by Edchris177 on Feb 03, 2011 - 04:00 AM.
--
Hobie 18 Magnum
Dart 15
Mystere 6.0XL Sold Was a handful solo
Nacra 5.7
Nacra 5.0
Bombardier Invitation (Now officially DEAD)
Various other Dock cluttering WaterCrap
-- -
- Rank: Mate
- Registered: Feb 19, 2008
- Last visit: Aug 26, 2023
- Posts: 671
Posted: Feb 03, 2011 - 08:48 AM
-
- Rank: Mate
- Registered: Feb 19, 2008
- Last visit: Aug 26, 2023
- Posts: 671
Posted: Feb 03, 2011 - 08:49 AM
-
- Rank: Lubber
- Registered: Sep 22, 2010
- Last visit: Aug 02, 2013
- Posts: 31
Posted: Feb 03, 2011 - 09:00 AM
Q2. I put a helicoil in the larger diameter mast ball to thread it onto my current DS rod. Works great and the captive mast base is worth every penny -
- Rank: Lubber
- Registered: Sep 22, 2010
- Last visit: Aug 02, 2013
- Posts: 31
Posted: Feb 03, 2011 - 09:02 AM
Q2. I put a helicoil in the larger diameter mast ball to thread it onto my current DS rod. Works great and the captive mast base is worth every penny -
- Rank: Mate
- Registered: Dec 21, 2009
- Last visit: Apr 16, 2013
- Posts: 127
Posted: Feb 03, 2011 - 10:12 PM
Hall,
I also have a '77 Nacra that I acquired last year, did a bit of fixing up, and sailed last summer.
Q1. I had a local guy (Wright Sail) sew me in a complete new jib zipper for $100.
Q3. Ed's described it well. I looked and unfortunately I don't have a pic of that
Q4. just jam the hold down line from the rudder in the piv. it will pop up from bow to stern when activated.
In case you have not found this guys site it has some good pics http://www.radesignz.com/nacra5.2redo.htm
Also Wolfman has some great rigging pics http://www.thebeachcats.c…ictures/?g2_itemId=74145
And check this link http://www.thebeachcats.c…ictures/?g2_itemId=35563 for more rigging pics.
This forum is awesome. I would have never made it on the water with out it.
--
Gray Amick
Chapin, SC
'77 NACRA 5.2
-- -
- Rank: Mate
- Registered: Aug 13, 2010
- Last visit: Mar 10, 2014
- Posts: 294
Posted: Feb 08, 2011 - 01:29 AM
THanks to all who took time to resond !! Had some of the pixs but not all. Olde guys need pixs..
Think I might try the helicoil thing for the ball cuz the difference in the size of the thread on the DS is so small and the strenght issue looks moot.. and it saves $$
The pivotmatic looks like a great up grade. Got the idea thx..
Going to sail it once or twice till I see how the jib lines work befor I relocate the tacks for them and redo the tramp for trap lines and under tramp jib rigging.
Same for the zipper prob cuz I may want to do a roller and that might change things.. Sail it.. try it.. I am in Northern Calif and could have gone out last weekend (Opps Sorry East Coast guys)
The riging of the jib is still not clear. Coming from a H 16 background.. In a H16 the tension in the rig is established by the downhaul of the jib line. The forestay is slack.. The forstay on the 5.2 is a monster and looks like it should carry the tension of the rigging.. Now my sheet from the bottom of the downhaul cable is tied OVER THE BLOCK AND AROUND THE PULLEY. My guess is that the block should have a bar under the pulley that the line attaches to so the pulley is free to apply tension whenit is rigged with the block in the bottom of the mast and is tightened.. Will try to get a pix tomorrow.
BUT,,, Does the rig tension leave the forestay with tention or is that done with the downhaul for the jib and the tension end up in the leach of the jib.?? Or.. Is there just a bit of slack in the rigging. side stays and forestay??? Should the forestay be tight enough to support the leach at all times??
PS.. Whats with the spar on the 5.2 that is adevrtized now in the clasified?? Looks like it has a spar and the stock lines from the hulls...
Thanks for the info. Buzz out to Calif and go for a sail on her with me.. Going to have the new sheets and the mast base installed next week.. Thx Hal
--
Hal Liske
Livermore CA
H 16 (6+ 1.. Friends) H 3.2 N 5.2 (2) H 17 (2) H-18
Nacra 5.8 (son's) H 20 (Friends)
It's a Sickness
I Need a A Cat Please
-- -
- Rank: Mate
- Registered: Aug 22, 2007
- Last visit: Jan 07, 2015
- Posts: 742
Posted: Feb 08, 2011 - 11:51 AM
--
Rob
OKC
Pile of Nacra parts..
-- -
- Rank: Chief
- Registered: Nov 26, 2009
- Last visit: Aug 10, 2024
- Posts: 2531
Posted: Feb 08, 2011 - 02:05 PM
Different horse the Nacra is. When I first picked up my 5.7 I took tons of useless pictures. Occasionally one of these proves useful!
In the photo below look at the top right. You can see 3 swagings, & 2 of the three thimbles. The top & bottom thimbles (or left & right if you visualize the mast being vertical) are shrouds, going to the respective chain-plates on the hulls. The center one is the fore stay-that will go down to a 10 hole adjuster that connects via a shackle to the two bridal wires,(one from each hull) forming an inverted "Y". The thinner wires you see are for the double traps.
The mast rake is set by moving the fore stay up or down in the 10 hole chainplate. (I borrowed that photo, note it is rigged wrong, the bridal wires should be inside the chainplate to properly distribute loads).
The rig is tensioned by setting the mast rake,(as above) then set one shroud in the appropriate hole (again each shroud connects to a 10 hole chainplate). Have a buddy pull on a trap wire, or put on a harness & hang from the wire while you set the second shroud. Voila, you now have the rig tensioned & the jib is still sitting at your feet.
Now observe the wire that goes around the block attached to the mast. That is the jib halyard, with block attached,(I think this is the setup you have). The top of jib will attach via a shackle to the end of the wire at top left of photo. As you haul the jib up, you zipper it up as it slides UP the forestay. The tack of the jib is then attached to the jib hanger (it is hanging down in the bottom photo, you would rotate it upwards & attach jib). Now you will tension the jib independently of the rig. With the jib raised, the block with becket (left center of top photo) will now be near the base of the mast. You raised the jib with the long line attached to the becket. When the line was attached, it was done so as to leave appx 2 feet of length as a trailing end. This does not show in the photo. Visualize a 25' line, tied to the beckett so as to leave a 2' tail. Comprende?
Once you raise the jib, take that 2' end & run it through the appropriate strap eye on the mast, back around the pulley, then through the jam cleat on the mast to hold it. This gives 3:1 to tension the jib. You don't need to tension it like a piano wire, you're not in the Worlds with an old 5.2, just take the wrinkles out of the jib, then stow the halyard in the tramp pocket.
All that's left is to attach the lines from the jib blocks, see the manual for this if in doubt. These photos & more are in my album under members 1984 Nacra 5.7 Click on photos in post to get full size.
Hope this works for you.
Edited by Edchris177 on Feb 08, 2011 - 04:28 PM.
--
Hobie 18 Magnum
Dart 15
Mystere 6.0XL Sold Was a handful solo
Nacra 5.7
Nacra 5.0
Bombardier Invitation (Now officially DEAD)
Various other Dock cluttering WaterCrap
-- -
- Rank: Mate
- Registered: Aug 13, 2010
- Last visit: Mar 10, 2014
- Posts: 294
Posted: Feb 15, 2011 - 01:07 AM
Thanks again to all who have taken a sec to respond !!!

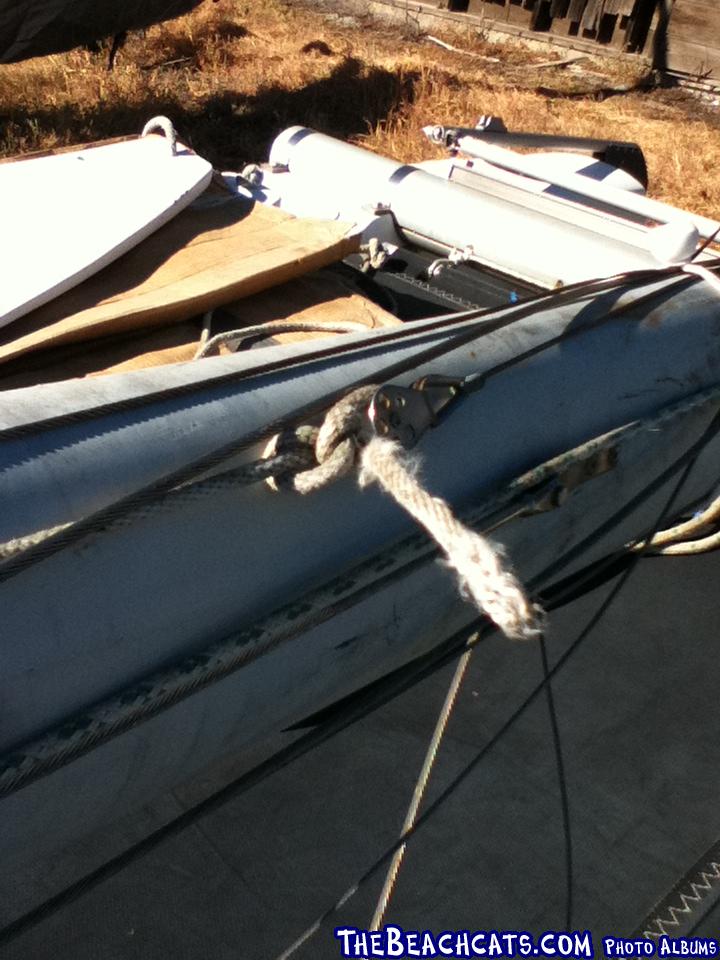

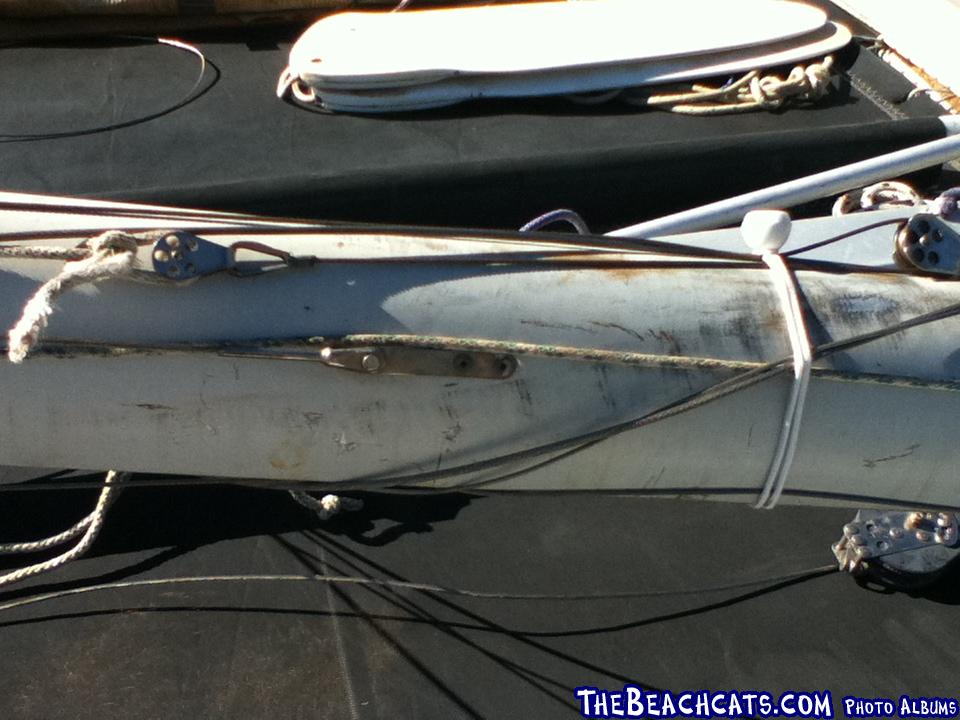

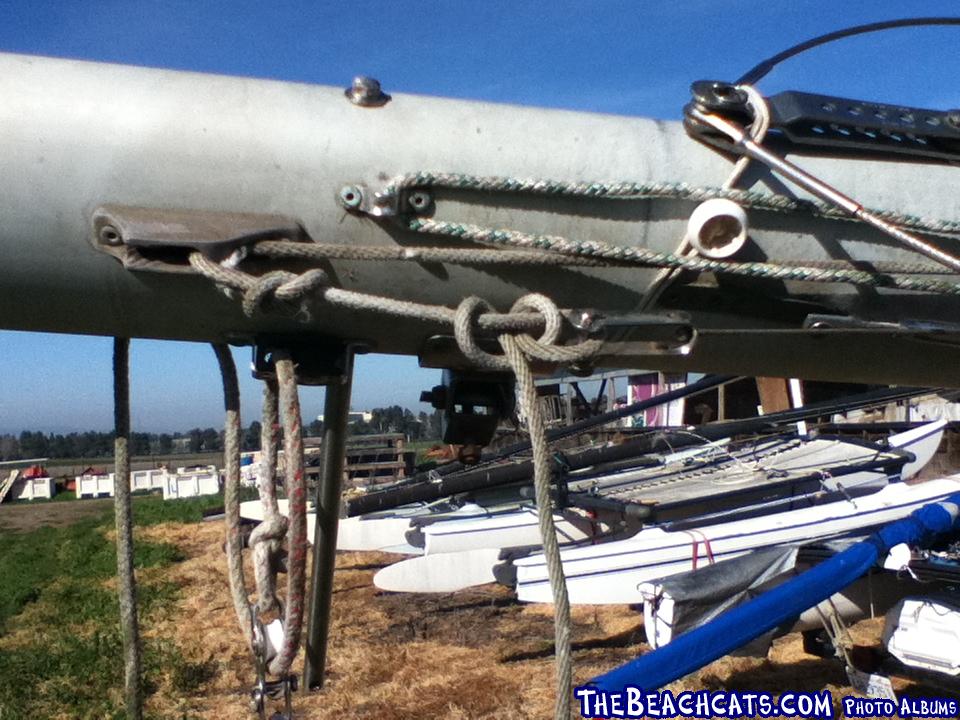

1..JIb Rigging This is a pic of the Halyard conection to the jib tac.. ( If the pix works..Figured that it was originally and probably did not have the wire piece( SLO Sail shop make 2 styles of jib halyard).. So Going to install a block with a becket there .. At the base of the mast only a eye and the jam cleat now.. Going to install a cheek block there.
Center Starb. side of the front of the mast OK for the cheek block?? What was the duty of the eye there on the lower part of the mast there ??
2..Mast base and DS pin. Is there really a difference in the durability of the 2 sizes of the DS if you lower the mast properly?? YURDLE.. Was that your DS?? Not sure that it is worth it to install a bigger DS??
3..I have the old single post mast rotation control. Looks like it will work?? Worth the retrofit of a newer style?? Same for the spreaders. (How about sealing the old style spreaders to seal the mast??
4.. Sailed H 16s.. NO CENTER BAR on the tramp. Looks like a nightmare.. Read in other posts that it can be gone with some "bracket" retro work. Not clear which bracket???
5..Going to put some gromets in the tramp for the trap lines and to relocate the jib blocks. Think I can figure out the aft Trap lines. Are the forward ones OK in the X Memeber??
6.. The boom has the older 3 block set-up. Worth getting a new block for that?? Located on whitch tac point.. Want to contribute??. Send cash..
7.. Have a roller set up from an H18. Planning to single most of the time.. Might be handy to depower.. Looks like it may work.. Any tips or advice??

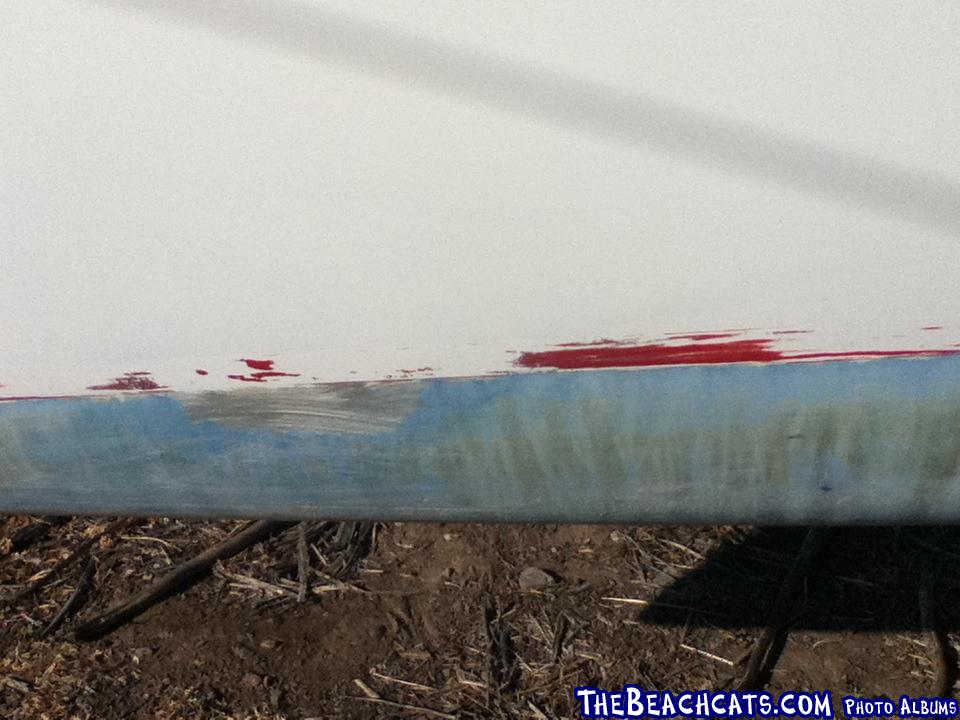

8.. Now the hulls.. The last owner painted the keels with a anti-fouling paint. Blue in the pix.. Looks like he primed it with some kind of primer..
