Trying set up "new" to me Miracle 20. Can't figure out how to set stock barber hauler. Can anybody post picture of such setup? Interested specifically where to attach jib blocks.
--
Andrew
----------------------------------------------------------------------------------
A lot of great surfers were ruined by family and steady job.
--
Hobie Miracle 20 barber hauler
-
- Rank: Lubber
- Registered: Jun 28, 2011
- Last visit: Aug 06, 2013
- Posts: 40
Posted: May 14, 2012 - 10:01 AM
-
- Rank: Master Chief
- Registered: Jun 20, 2006
- Last visit: Dec 04, 2024
- Posts: 7090
Posted: May 14, 2012 - 02:23 PM
not sure if this helps but here it is on my mystere
-
- Rank: Administrator
- Registered: Jul 19, 2001
- Last visit: Nov 15, 2024
- Posts: 3446
Posted: May 14, 2012 - 02:34 PM

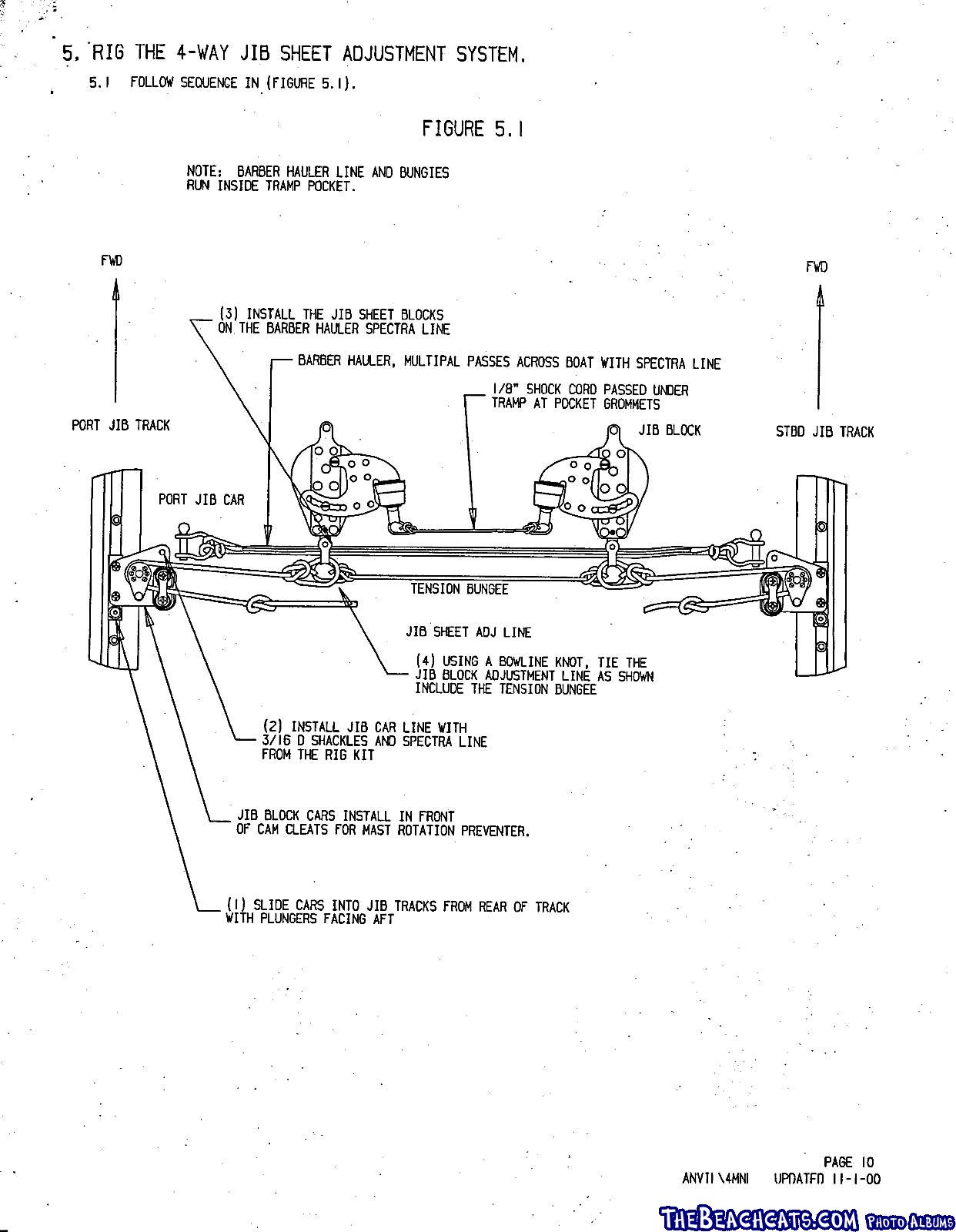

Similar to MN3's setup. Here's a link to the Hobie 20 assembly manual, the "4 way jib system" is explained on page 10.
http://static.hobiecat.co…tal_assets/H20Manual.pdf
Pictures from a Hobie 20 would still be nice if anyone has them.
--
Damon Linkous
1992 Hobie 18
Memphis, TN
How To Create Your Signature
How To Create Your Own Cool Avatar
How To Display Pictures In The Forums.
-- -
- Rank: Lubber
- Registered: Jun 28, 2011
- Last visit: Aug 06, 2013
- Posts: 40
Posted: May 14, 2012 - 05:05 PM
I have steel cable running between jib cars 1 and 2. Should I hook jib blocks 3 and 4 on that steel cable and attache bungee cord between them and run lines out to jib cars 1 and 2 as it shown on picture?
--
Andrew
----------------------------------------------------------------------------------
A lot of great surfers were ruined by family and steady job.
-- -
- Rank: Lubber
- Registered: Jun 28, 2011
- Last visit: Aug 06, 2013
- Posts: 40
Posted: May 18, 2012 - 11:13 AM
Nobody???
--
Andrew
----------------------------------------------------------------------------------
A lot of great surfers were ruined by family and steady job.
-- -
- Rank: Mate
- Registered: Jun 26, 2009
- Last visit: Mar 20, 2015
- Posts: 150
Posted: May 18, 2012 - 01:04 PM
You have steel in place of multiple pieces of Spectra? Should be OK but I wouldn't want to have to crawl over it as your crew. -
- Rank: Chief
- Registered: Apr 19, 2011
- Last visit: Dec 10, 2024
- Posts: 1461
Posted: May 18, 2012 - 05:39 PM
Hi Andrew,
I don't see a barber hauler in your diagram.
In this photo, the Barber Hauler is green:
http://www.thebeachcats.c…ictures/?g2_itemId=83790
What you have labeled barber hauler is really the jib block line to hold the blocks in place. Is this the steel cable you mention that will be replaced with spectra or similar?
A Barber Hauler is a block on your jib sheet between the sail and the jib blocks attached to a line that pulls the jib sheet outboard toward the front of the tramp, usually near the front crossbar. You use this going downwind to open the slot between the main and jib.
What your diagram shows as shackles under the jib blocks should be a small block to allow smooth movement along the cable or specrta line.
Edited by klozhald on May 18, 2012 - 04:43 PM.
--
Sheet In!
Bob
_/)_____/)_/)____/)____/)_____/)/)__________/)__
Prindle 18-2 #244 "Wakizashi"
Prindle 16 #3690 "Pegasus" Sold (sigh)
AZ Multihull Fleet 42 member
(Way) Past Commodore of Prindle Fleet 14
Arizona, USA
-- -
- Rank: Administrator
- Registered: Jul 19, 2001
- Last visit: Nov 15, 2024
- Posts: 3446
Posted: May 18, 2012 - 06:48 PM
The Hobie 20 has kind of it's own version of a barber hauler, instead of redirecting the sheets like the traditional barber-hauler the Hobie 20 moves the entire jib block side-to-side (close or open the slot) as well as fore and aft with the jib traveler tracks. Thus the name "4-way jib sheet adjustment system".
Nasty setup for the crew, blocks and lumps everywhere. Between this mess and the daggerboards, shrouds, and trap wires it's "boat bite city".
I've now got the whole Hobie 20 assembly manual available as linkable images, as well as a three page tuning/sailing manual by Bob Curry.
http://www.thebeachcats.c…ictures/?g2_itemId=87142
--
Damon Linkous
1992 Hobie 18
Memphis, TN
How To Create Your Signature
How To Create Your Own Cool Avatar
How To Display Pictures In The Forums.
-- -
- Rank: Lubber
- Registered: Jun 21, 2012
- Last visit: Jun 21, 2012
- Posts: 1
Posted: Jun 21, 2012 - 02:53 PM
You should have a pocket in your tramp that the stainless wire goes through. You can put a plastic hose over top of the cable the width of the tramp pocket. Mount a jib block on each side, to the cable. Then put on the lines that control in and out movement of the blocks. When you put your jib sheets on make sure you put both lines of each side (2 part purchase) through the rings that control the barber hauler
