What a day. Just got a nacra 5.8. Trying to figure out how.to rig the downhaul. Never hada cat before. This looks like a bigger chalenge than I bargained for. Anyone got a link to some high res pics of the 6:1 (or whatever) downhaul setup?
--
Brian K Holder
Nacra 5.8
Pocatello, ID
New to catamarans
--
Clawing off the lee shore
-
- Rank: Lubber
- Registered: Aug 06, 2012
- Last visit: Aug 22, 2012
- Posts: 5
Posted: Aug 12, 2012 - 05:55 PM
-
- Rank: Mate
- Registered: Nov 02, 2004
- Last visit: Aug 07, 2023
- Posts: 626
Posted: Aug 12, 2012 - 08:38 PM

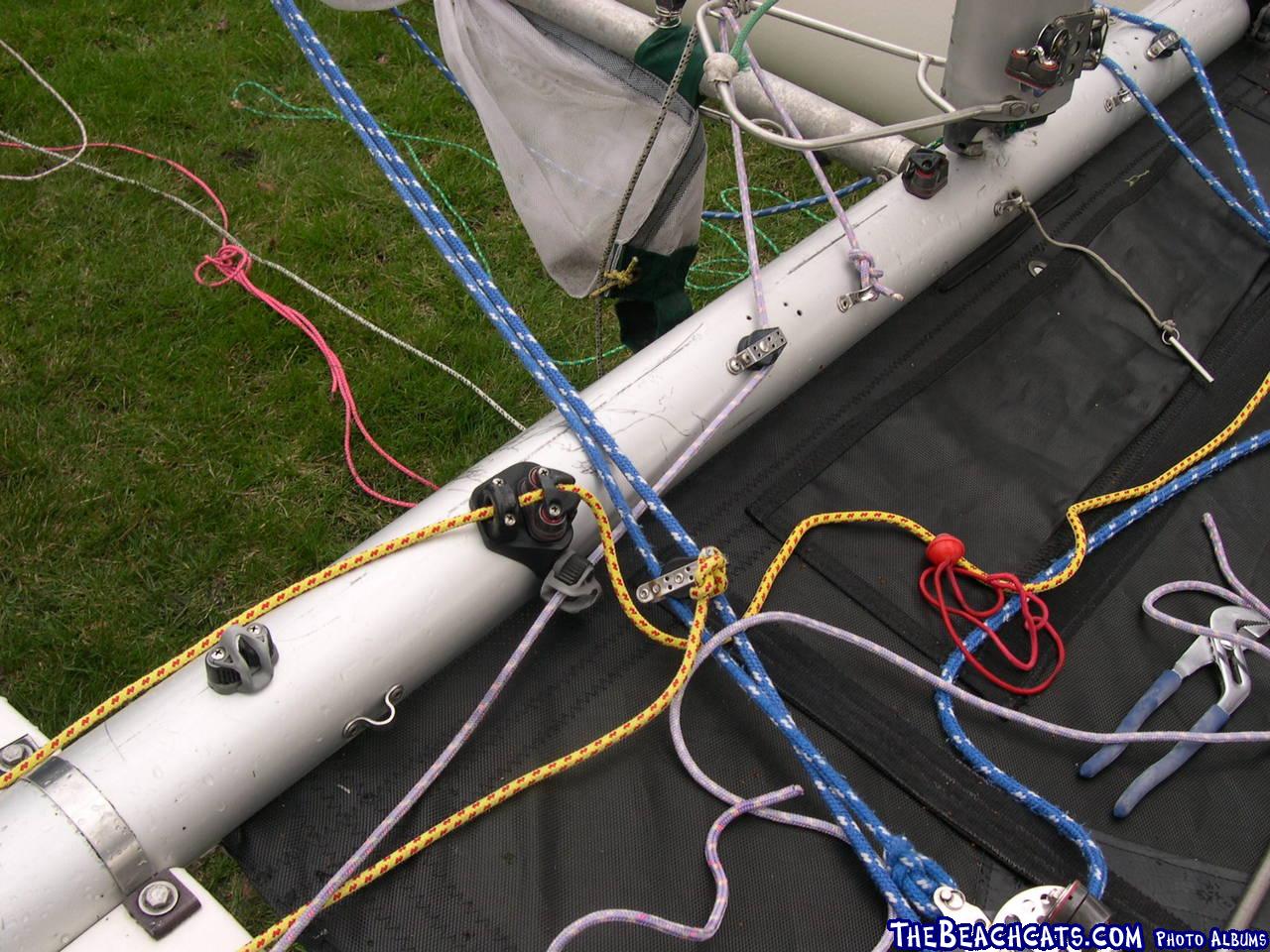

Here's the bottom
http://thebeachcats.com/pictures/?g2_itemId=18290
The top is a double hanging off each side of the sail.
--
Ron
Nacra F18
Reservoir Sailing Assn.
Brandon, Mississippi
-- -
- Rank: Lubber
- Registered: Aug 06, 2012
- Last visit: Aug 22, 2012
- Posts: 5
Posted: Aug 13, 2012 - 12:08 PM
I think that will be very helpful. How long is that downhaul line? Can you also show me how the rotator is set up?
--
Brian K Holder
Nacra 5.8
Pocatello, ID
New to catamarans
-- -
- Rank: Mate
- Registered: Jul 06, 2008
- Last visit: Jul 19, 2018
- Posts: 986
Posted: Aug 13, 2012 - 12:19 PM
You definitely picked a boat with a lot of setup for a beginner. It's an awesome boat just a bit of high learning curve for rigging. A friend of mine has done some interesting modifications to his 5.8 that I want to document sometime if I remember.
--
Dustin Finlinson • Magna, UT
Member: Utah Sailing Association
1982 Prindle 18
1986 Hobie 17
1982 Prindle 16
1980 Prindle 16(mostly)
1976 Prindle 16(mostly)
Check out "Prindle Sailors" on Facebook.
-- -
- Rank: Mate
- Registered: Nov 02, 2004
- Last visit: Aug 07, 2023
- Posts: 626
Posted: Aug 13, 2012 - 01:34 PM
Not a 5.8 but a 6.0 with barber hauler, and only one side of the rotater rigged. Your set up may be somewhat different, (turning blocks and cleats).
Downhaul line is 3/16 and about 30 feet or shorten to taste, ends tie to the crew's trap dog bone.
Rotater line is either about 18 feet of 3/16 continuous or 2 pieces of 3/16 about 9 feet with the ends tied to the beam straps.
--
Ron
Nacra F18
Reservoir Sailing Assn.
Brandon, Mississippi
-- -
- Rank: Mate
- Registered: Jan 14, 2004
- Last visit: Sep 25, 2024
- Posts: 866
Posted: Aug 13, 2012 - 02:16 PM
Brian,
I've got good friends in Pocatello, Blackfoot, Rigby, and Idaho Falls that I do stuff with regularly. I'll be up there this fall. I'm also extremely knowledgeable with the 5.8 and the Nacra boats. PM me and I can help you. I've got tons of pictures and documentation. The link Ron provided above will take you to my album, there is some helpful stuff there also. There is also a picture of one of my Blackfoot buddies. See if you recognize him.
--
Philip
-- -
- Rank: Lubber
- Registered: Aug 06, 2012
- Last visit: Aug 22, 2012
- Posts: 5
Posted: Aug 14, 2012 - 09:02 PM
Went out today for the first time. Holy cow! Catamarans point like crazy and fly when puff hits. I'm sold. Didn't even get the main up and still had a great day. Love it. Thanks for the tips guys. Next time, with a little braver crew, we'll be under full sail and I'll likely have a crash story to share.
--
Brian K Holder
Nacra 5.8
Pocatello, ID
New to catamarans
-- -
- Rank: Lubber
- Registered: Jul 27, 2012
- Last visit: Sep 19, 2012
- Posts: 20
Posted: Aug 15, 2012 - 08:18 AM
akoutdoors1, you and I are literially in the same boat. I am just as new took my Nacra 5.8 out last weekend with only the jib as well, and had a similar great experience. I was beating all monohulls with just the job. The 5.8 is so bouant that I didn't get a drop of water on me the whole time. Read my Need help Rigging my Nacra 5.8, people have been very helpful.
--
William
Nacra 5.8 (SpiderGorilla/SpiderMonkey)
-- -
- Rank: Lubber
- Registered: Aug 06, 2012
- Last visit: Aug 22, 2012
- Posts: 5
Posted: Aug 20, 2012 - 09:08 AM
Thanks I will check out your post. I took the boat out yesterday. We had little wind so I raised the main. Even better. Next time maybe we'll hoist both and let her run a little.
--
Brian K Holder
Nacra 5.8
Pocatello, ID
New to catamarans
-- -
- Rank: Mate
- Registered: Jul 06, 2008
- Last visit: Jul 19, 2018
- Posts: 986
Posted: Aug 20, 2012 - 11:07 AM
Hey Brian The Utah Sailing association will be at Bear Lake on the Labor Day weekend. We have several 5.8 owners in our group. If you want to come pick their brains it can probably be arranged. We have a primo group site on the south end of the lake. Camping fees to joins us for a family are around $45-$55 and that includes dinner Saturday night.
This might be a good time get some help with that 5.8. Even though the group is a Utah sailing group we have many members that come down from Pinedale, Wyoming to hang with us also. You are probably about as close to Bear Lake or possibly even closer than I am so if your interested we spend Memorial weekend, 4th of July weekend, and Labor Day weekend there every year. The camping is prearranged by the group and rates are cheaper if paid early in the season as part of our membership. It can be hard to get these sites on your own because they are group sites and are reserved almost a year in advance.
We don't even have to use the ramp with the water so high right now we just drop our boats onto beach wheels from the parking lot and walk them the 50ft or so to the water. If you don't have wheels don't worry most are more than happy to share.
Let me know if your interested. On Saturday we will have an unofficial race up to Garden City to eat lunch at LeBeau's and Back then a Big Group Spaghetti Dinner.
Edited by Quarath on Aug 20, 2012 - 11:10 AM.
--
Dustin Finlinson • Magna, UT
Member: Utah Sailing Association
1982 Prindle 18
1986 Hobie 17
1982 Prindle 16
1980 Prindle 16(mostly)
1976 Prindle 16(mostly)
Check out "Prindle Sailors" on Facebook.
-- -
- Rank: Lubber
- Registered: Aug 06, 2012
- Last visit: Aug 22, 2012
- Posts: 5
Posted: Aug 22, 2012 - 08:58 AM
Dustin, that's great. I told my wife about it and we're definitely planning on coming. We were at Bear Lake 3 weeks ago, raspberry festival, some one flipped a prindle, LOTS of wind, even for the Balboa 26 we were on. What should we bring besides the boat, wetsuits, floaties, insurance cards?
--
Brian K Holder
Nacra 5.8
Pocatello, ID
New to catamarans
--
