i was making a righting pole for my hobie 16 and when it was on its side i noticed a slight bend on the dolphin striker rod. is the bend going to cause it to break? should i get a new one? thanks
bent striker rod
-
- Rank: Mate
- Registered: May 29, 2011
- Last visit: Mar 13, 2016
- Posts: 332
Posted: Apr 14, 2013 - 03:46 PM
-
- Rank: Mate
- Registered: May 29, 2011
- Last visit: Mar 13, 2016
- Posts: 332
Posted: Apr 14, 2013 - 03:49 PM
-
- Rank: Mate
- Registered: Jun 17, 2011
- Last visit: Sep 24, 2023
- Posts: 783
Posted: Apr 14, 2013 - 05:16 PM
It's probably fine, I would gently try to straighten it. I've had several boats with bent rods like that from people tying them to a trailer or other object. I just used my foot to gently straighten them all and was good to go.
--
Greenville SC
Offering sails and other go fast parts for A-class catamarans
-- -
- Rank: Mate
- Registered: Aug 22, 2007
- Last visit: Jan 07, 2015
- Posts: 742
Posted: Apr 14, 2013 - 06:23 PM
If that doesn't work, a stainless rod is easy enough to come by.
--
Rob
OKC
Pile of Nacra parts..
-- -
- Rank: Chief
- Registered: Jun 24, 2009
- Last visit: Jun 15, 2023
- Posts: 1555
Posted: Apr 14, 2013 - 06:57 PM
I agree, doesn't look too bad. I've sailed on worse. It should probably be replaced at some time but you can probably use it for a season or two.
--
Dave Bonin
1981 Nacra 5.2 "Lucile"
1986 Nacra 5.7 "Belle"
Winnipeg, Manitoba, Canada
-- -
- Rank: Mate
- Registered: May 29, 2011
- Last visit: Mar 13, 2016
- Posts: 332
Posted: Apr 14, 2013 - 07:06 PM
i can get one easily but if its not bad i was just going to use it. -
- Rank: Lubber
- Registered: May 26, 2011
- Last visit: Dec 16, 2014
- Posts: 81
Posted: Jun 03, 2013 - 08:23 PM
Hey guys, how bad does this look? Can I use it for the rest of the season? Seems like trying to straighten it will just weaken it more. Looks like a real pain to replace and I just want to sail this thing.
Sorry, I have an hour trying to get the image in the post... this is the best I could do.
--
Mooched Beachcats in the past
Time to try ownership with Nacra 5.7
Port Clinton, Lake Erie Islands, Ohio
-- -
- Rank: Mate
- Registered: Nov 02, 2004
- Last visit: Aug 07, 2023
- Posts: 626
Posted: Jun 04, 2013 - 01:05 AM
Is this your image?
Looks like someone de-masted with the pin in.
--
Ron
Nacra F18
Reservoir Sailing Assn.
Brandon, Mississippi
-- -
- Rank: Mate
- Registered: Feb 19, 2008
- Last visit: Aug 26, 2023
- Posts: 671
Posted: Jun 04, 2013 - 01:55 AM
i'd be tempted to leave it on and NOT try to straighten it
as taking it off looks like it's going to be messy... -
- Rank: Lubber
- Registered: May 26, 2011
- Last visit: Dec 16, 2014
- Posts: 81
Posted: Jun 04, 2013 - 05:58 AM
Yep, Guilty. I must have missed that memo.
Ron, What do you think of sailing it for a season? I'm no racer.
--
Mooched Beachcats in the past
Time to try ownership with Nacra 5.7
Port Clinton, Lake Erie Islands, Ohio
-- -
- Rank: Chief
- Registered: Nov 26, 2009
- Last visit: Aug 10, 2024
- Posts: 2531
Posted: Jun 04, 2013 - 08:09 AM
The downside Scott, is the mast ball will sit on an angle. If you analyze the forces, they will no longer be pushing the ball straight down onto the pin. The mast will not ride on the top, but biased to the side of the ball.
Am I correct in thinking that is a 9/16" rod, with a 1 1/2" ball?
I have a spare rod that I could lend you for the season, but shipping it back & forth is probably 1/2 the cost of a new one.
I would straighten it, you can bend 304 SS that amount with little loss of strength. Then use it for the summer, & have new one built...see my album here. (By the way, to post an image, right click the image then select "copy image location". Then click the 3rd tab, (IMAGE) just below where you are typing the post. That will insert a couple of brackets & IMG into your post. Put the cursor right between them & paste the link from the photo that you copied, voila!)
http://www.thebeachcats.c…ictures/?g2_itemId=73301
There are 2 ways to straighten, on or off the boat. The album shows how to get it off. If you elect to do it on the boat, you will need 2 extra nuts, & I mean the ones on the rod! They are 9/16" NF, I believe it is 18 threads/inch. Thread them on, & turn them down to 1/4" above the start of the bend. Line them up so you can place a deep socket over both of them. Place a long extension into the socket for leverage. Now comes the tricky part, you will need someone strong underneath to positively hold the rod, you should not use the beam alone to hold it. Go a little at a time, you don't want to overbend it, & don't look for perfection. It will bend to within a millimeter or two of true.
When you do go to replace the rod, you will most likely have to cut it. If the rod straightens OK, you MIGHT be able to turn the nuts off the top, but generally it takes very little bend to prevent that. There are most likely only threads 1/2 way down the bottom of the rod, so they won't come off that way.
If you get in a real bind, let me know,& we'll look into a loaner.
Edited by Edchris177 on Jun 04, 2013 - 08:11 AM.
--
Hobie 18 Magnum
Dart 15
Mystere 6.0XL Sold Was a handful solo
Nacra 5.7
Nacra 5.0
Bombardier Invitation (Now officially DEAD)
Various other Dock cluttering WaterCrap
-- -
- Rank: Chief
- Registered: Nov 26, 2009
- Last visit: Aug 10, 2024
- Posts: 2531
Posted: Jun 04, 2013 - 08:16 AM
Did you dismast while sailing, or was it while lowering the mast?
Remember, when lowering YOU MUST ROTATE THE MAST 90* SO THE DS ROD LINES UP WITH THE SLOT.

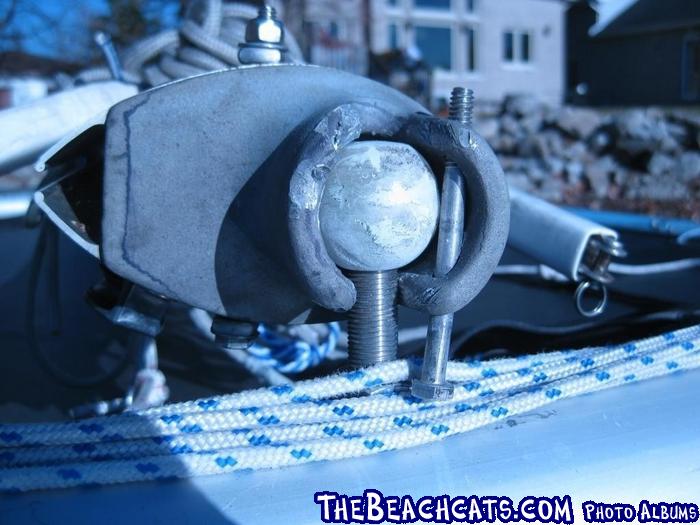

This photo shows my mast lowered correctly,notice I was an idiot & turned it 90* the wrong way, making removal of my ghetto mast pin(bolt) impossible. I said screw it, & got the bolt cutters.
In this photo you can clearly see why dropping the mast in any position but 90* results in a bent rod.
--
Hobie 18 Magnum
Dart 15
Mystere 6.0XL Sold Was a handful solo
Nacra 5.7
Nacra 5.0
Bombardier Invitation (Now officially DEAD)
Various other Dock cluttering WaterCrap
-- -
- Rank: Mate
- Registered: Mar 12, 2003
- Last visit: Feb 19, 2021
- Posts: 879
Posted: Jun 04, 2013 - 09:10 AM
Had this happen on a 5.8 couple weeks ago. The skipper just came back next morning with a 4' long hollow steel tube that fit perfectly over threaded rod. Took 10 seconds to bend it back upright. Pete -
- Rank: Lubber
- Registered: May 26, 2011
- Last visit: Dec 16, 2014
- Posts: 81
Posted: Jun 04, 2013 - 10:59 AM
Thanks for the quick comments and your time.
BIG disappointment here, I was rigging it for the first time in the driveway to confirm it was all here and I could make it work. I was lowering the mast.
I was well aware of the 90 degree rule and thought I was following it.... my best guess is that it was a combination of the mast a couple degrees off center and not quite turned 90 degrees. There was a lot going on, watching the mast, watching my feet coming near the rear beam, the whole tramp/trailer hitch rocking moment, and the thing feels heavier than I expected, leverage I expect. I had plenty of help. No excuses just stupid here.
The old style foot does not leave much room for a mistake.
Yes, 1 1/2" ball. I even remembered to start the pin on the correct side.
I'm headed to the hardware for nuts and a try at straightening.
Thanks again comrades. I'll let you know how it goes.
--
Mooched Beachcats in the past
Time to try ownership with Nacra 5.7
Port Clinton, Lake Erie Islands, Ohio
-- -
- Rank: Mate
- Registered: Aug 15, 2010
- Last visit: Oct 19, 2024
- Posts: 301
Posted: Jun 04, 2013 - 03:54 PM
I had two extra front 16 racks but just scrapped out one. I did not want two sitting around. If you want one let me know.
My sailing buddy Lance keep a boat at Anna Marie and he travels down your way often.
Bill Kent
Edited by bill40421SE on Jun 04, 2013 - 03:55 PM.
--
Bill 404 21SE
-- -
- Rank: Chief
- Registered: Nov 26, 2009
- Last visit: Aug 10, 2024
- Posts: 2531
Posted: Jun 04, 2013 - 06:06 PM
Good call Pete.
As Pete said above, if you have a tube that will fit snugly onto the rod, it is a very easy job. If the pipe doesn't fit well, it is easy to screw the threads. Then you run into problems with threading the ball back on, or moving the nut on top of the beam.
You can use two lengths of pipe. If you have a short piece that fits well, place that on the rod, then slide any piece of pipe over the first piece.
If you do queer up the threads, they are easy to fix, assuming you haven't really destroyed them, & have a 9/16" NF die. Just turn it down the rod, though it won't go beyond the bend. It will jam there, & you screw the die.
Edited by Edchris177 on Jun 04, 2013 - 06:07 PM.
--
Hobie 18 Magnum
Dart 15
Mystere 6.0XL Sold Was a handful solo
Nacra 5.7
Nacra 5.0
Bombardier Invitation (Now officially DEAD)
Various other Dock cluttering WaterCrap
-- -
- Rank: Chief
- Registered: Jun 24, 2009
- Last visit: Jun 15, 2023
- Posts: 1555
Posted: Jun 04, 2013 - 06:11 PM
I've bent a rod like that twice now. Yes I'm an idiot, however I think inevitably everyone forgets to rotate the darn thing at some time, usually when you are lowering rather than raising.
The first time I just bashed it back into place by hammering the ball with a hammer wrapped in a rag. The second time I was fed up and just sailed with it, and its still bent. As long as the mast can still rotate it should be fine just leaving it bent.
--
Dave Bonin
1981 Nacra 5.2 "Lucile"
1986 Nacra 5.7 "Belle"
Winnipeg, Manitoba, Canada
-- -
- Rank: Mate
- Registered: May 29, 2011
- Last visit: Mar 13, 2016
- Posts: 332
Posted: Jun 04, 2013 - 06:17 PM
I will take it. thanks Angelo
Edited by optikid on Jun 04, 2013 - 07:48 PM. -
- Rank: Lubber
- Registered: May 26, 2011
- Last visit: Dec 16, 2014
- Posts: 81
Posted: Jun 04, 2013 - 08:27 PM
Ed and Pete:
I read Ed's album on the repair before I posted here. Excellent.
Pete, I got a power right system from you a couple weeks ago and I've been watching your store here, thanks.
I found that it is 9/16 w/ 18 threads and picked up two galvanized nuts. I'm looking for pipe to fit over the nuts so the threads are protected. Interesting that it will take 4' of leverage to do the job. I'm thinking big channel locks padded on the rod below and a two hundred pounder holding it to keep from twisting the beam. I'm going to try to gently bend it back to close.
Thanks for everything guys. Maybe I can get onto the water this weekend after all.
--
Mooched Beachcats in the past
Time to try ownership with Nacra 5.7
Port Clinton, Lake Erie Islands, Ohio
-- -
- Rank: Mate
- Registered: Mar 12, 2003
- Last visit: Feb 19, 2021
- Posts: 879
Posted: Jun 04, 2013 - 08:47 PM
We didn't hold the striker below or worry about the beam, and had nothing over the threads. Ball screwed right back on. The skipper was so stoked after his first sail, then dropped me off to head north. Got a call hour later he tried to go under a bridge, hit abuttment & split bow 3' crack. He was a bit depressed, but I talked him into fixing it himself. Couple days later, he called super stoked about the fix & now a very confident sailor! Pete
