3D printed parts

Go to page 1 - 2 [+1]:

waiex191

Rank: Mate

Registered: Oct 07, 2020

Last visit: Feb 29, 2024

Posts: 359
Posted: Nov 17, 2020 - 03:32 PM

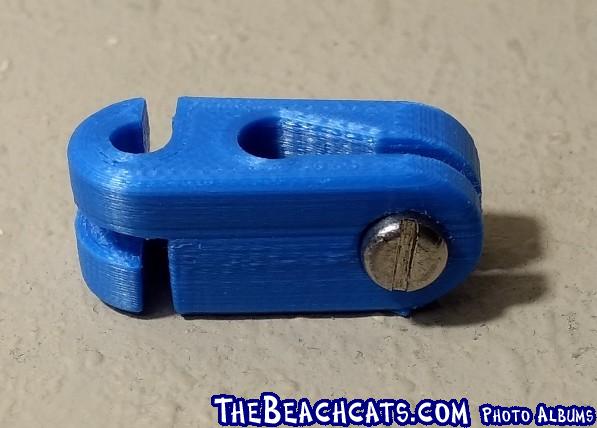

Thought I would start a thread to see if anybody is printing parts for their boat. I printed some jib clips for a buddy of mine who has a Capri 14.2. His old ones were worn out, so they would fall off the forestay as he was trying to snap them on. The clip screws onto the jib and clamps the bolt rope. To get it on the forestay you twist the clip 90 degrees, pop it on the stay, then rotate it back.

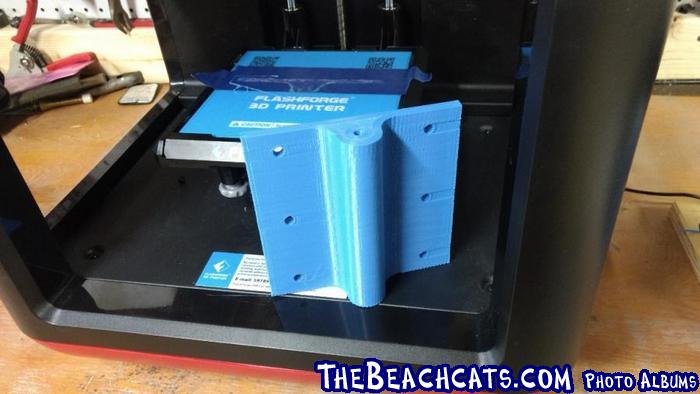

My $100 Snark came with a door hinge for the plywood rudder. I am not going to buy $300 worth of parts to put it back, so I printed this gudgeon for about $8 worth of filament. I'll be making a new rudder, rudder bracket, and tiller as well.

My buddy with the Supercat 17 says he had been having a hard time finding batten holders, and thought that was a good candidate for printed parts.

I designed all this stuff in Freecad and printed it on a Flashforge Finder printer.

Edited by waiex191 on Nov 17, 2020 - 03:36 PM.

--
Bryan in Poplar Grove, IL
Supercat 17, unknown year. Future project
Hobie 16, 1977 - died a spectacular death https://youtu.be/Y7O22bp2MVA
Hobie 16, 1978 - current boat
--
ziper1221

Rank: Lubber

Registered: Dec 25, 2015

Last visit: Jul 26, 2022

Posts: 42
Posted: Nov 17, 2020 - 10:41 PM

what material?
waiex191

Rank: Mate

Registered: Oct 07, 2020

Last visit: Feb 29, 2024

Posts: 359
Posted: Nov 18, 2020 - 09:17 AM

It's PLA. For the machine we have, that's the only option.

--
Bryan in Poplar Grove, IL
Supercat 17, unknown year. Future project
Hobie 16, 1977 - died a spectacular death https://youtu.be/Y7O22bp2MVA
Hobie 16, 1978 - current boat
--
samc99us

Rank: Mate

Registered: Apr 15, 2005

Last visit: Feb 21, 2024

Posts: 574
Posted: Nov 20, 2020 - 11:32 AM

PLA is very unlikely the only option for that machine. You should be able to print in ABS, in which ASA is an option, and the best choice for boat parts or anything that lives outside as it is UV stabilized.
DamonLinkous

Rank: Administrator

Registered: Jul 19, 2001

Last visit: Oct 31, 2024

Posts: 3445
Posted: Nov 20, 2020 - 12:16 PM

waiex191Thought I would start a thread to see if anybody is printing parts for their boat...

That's very cool Bryan! Can't wait to see what else you come up with.

Anyone else doing boat parts this way?

--
Damon Linkous
1992 Hobie 18
Memphis, TN

How To Create Your Signature

How To Create Your Own Cool Avatar

How To Display Pictures In The Forums.
--
waiex191

Rank: Mate

Registered: Oct 07, 2020

Last visit: Feb 29, 2024

Posts: 359
Posted: Nov 20, 2020 - 05:55 PM

samc99usPLA is very unlikely the only option for that machine. You should be able to print in ABS, in which ASA is an option, and the best choice for boat parts or anything that lives outside as it is UV stabilized.

Both of my kids have a Flashforge Finder. It doesn't have a heated bed. My neighbor has an Ender which has a heated bed and prints ABS. I'm still new to this. At work we either have people who run the machines or for metal 3D printing we go out to vendors.

Good to know about UV. My boats live inside when I'm not using them.

--
Bryan in Poplar Grove, IL
Supercat 17, unknown year. Future project
Hobie 16, 1977 - died a spectacular death https://youtu.be/Y7O22bp2MVA
Hobie 16, 1978 - current boat
--
waiex191

Rank: Mate

Registered: Oct 07, 2020

Last visit: Feb 29, 2024

Posts: 359
Posted: Jan 09, 2021 - 09:35 PM

Here is my first prototype of a batten pocket protector. Still tweaking parameters. They will cost me about 60 cents per pocket vs about $10 that I saw on Murrays.

Print on the left in blue, original part on the right in white.

Edited by waiex191 on Jan 09, 2021 - 09:36 PM.

--
Bryan in Poplar Grove, IL
Supercat 17, unknown year. Future project
Hobie 16, 1977 - died a spectacular death https://youtu.be/Y7O22bp2MVA
Hobie 16, 1978 - current boat
--
MN3

Rank: Master Chief

Registered: Jun 20, 2006

Last visit: May 22, 2024

Posts: 7089
Posted: Jan 09, 2021 - 10:07 PM

Nice!

and good job on the jib hanks
waiex191

Rank: Mate

Registered: Oct 07, 2020

Last visit: Feb 29, 2024

Posts: 359
Posted: Jan 09, 2021 - 10:24 PM

MN3Nice!

and good job on the jib hanks

Thanks! And now I know the proper name for jib hanks.

--
Bryan in Poplar Grove, IL
Supercat 17, unknown year. Future project
Hobie 16, 1977 - died a spectacular death https://youtu.be/Y7O22bp2MVA
Hobie 16, 1978 - current boat
--
ctcataman

Rank: Mate

Registered: Nov 25, 2015

Last visit: Jul 17, 2024

Posts: 661
Posted: Jan 10, 2021 - 05:20 AM

I print lots of parts for work, surgical instruments prototypes. More importantly I break lots of them. Be sure the slicer makes them solid. PLA isnt very strong. Its strength is about 16% of the most common aluminum. Use in steering parts should be avoided.

Parts break between the layers, which are weld lines.

The PLA parts feel good when new, and for a few cycles match the load capacity of conventional materials. Then they fall apart.

There are filled materials that are much stronger, some carbon filled. They didnt print well on our machines so I cant talk to their capacity.

I would recommend use in non critical parts only.

--
John

Nacra 5.0
CT
--
ctcataman

Rank: Mate

Registered: Nov 25, 2015

Last visit: Jul 17, 2024

Posts: 661
Posted: Jan 10, 2021 - 05:20 AM

BTW I made a wind vane of PLA.

--
John

Nacra 5.0
CT
--
samc99us

Rank: Mate

Registered: Apr 15, 2005

Last visit: Feb 21, 2024

Posts: 574
Posted: Jan 10, 2021 - 09:09 AM

My suggestion is to get some heated beds on those machines and at least switch to PETG, that has been my go-to material. Will post pictures later, I mostly print trailer parts but have been printing some lower load parts or those that don't see much tension (spinnaker pole end caps for example). It is on par with ABS in terms of strength, less warping, and much easier bed adherence. I am using Cura 4.8 for slicing with 120% flow on the first layer, either glue stick or hair spray on a glass bed.

For structural parts, I print a lot in carbon filled PETG from Atomic Filaments, its $50/kg. The other parts to look into are PC and Nylon, there are some nice prints on Prusa Mk. 3's with eSun PA-CF, also about $50/kg, but this is an advanced filament that requires drying. PETG also benefits from drying, I bought a food dehydrator to get me started.

Oh, you may need an all metal hotend for the carbon loaded PETG. Standard PETG with a 0.4mm nozzle can be printed at 230-240 deg C, so stock hotends work.

Finally, for those batten end caps, I would double the thickness and maybe increase the pocket depth slightly vs. a factory injection molded Nylon. That will get you back on-par strength wise, at a slight weight penalty.

John, PM sent on another topic.
samc99us

Rank: Mate

Registered: Apr 15, 2005

Last visit: Feb 21, 2024

Posts: 574
Posted: Jan 10, 2021 - 09:24 AM

Double post, deleted.

Edited by samc99us on Jan 10, 2021 - 09:25 AM.
waiex191

Rank: Mate

Registered: Oct 07, 2020

Last visit: Feb 29, 2024

Posts: 359
Posted: Jan 10, 2021 - 02:23 PM

Excellent discussion, thanks all. We do have one heated bed machine in the family, an Ender 3. My kid has it back at his college apartment. We will look into the different filaments. $50/KG doesn't seem too bad.

Mainly right now I'm working on the geometry of the design. The latest is set up for #6 screws and nuts.

At work we have resin printers. We have actually used those parts to make couplings to drive rotating equipment under test. Not as durable as the steel parts but cheap, fast, and easy enough to replace for an endurance test. We have also been going to vendors to have parts printed in aluminum and inconel. Cool stuff, but a bit out of my price range.

QuoteBTW I made a wind vane of PLA.

John, I had also considered this as a good project. Did you publish on thingiverse or anywhere?

Thanks,

--
Bryan in Poplar Grove, IL
Supercat 17, unknown year. Future project
Hobie 16, 1977 - died a spectacular death https://youtu.be/Y7O22bp2MVA
Hobie 16, 1978 - current boat
--
bacho

Rank: Mate

Registered: Jun 17, 2011

Last visit: Sep 24, 2023

Posts: 783
Posted: Jan 13, 2021 - 07:26 AM

Im printing parts in PETG and Carbon PETG for my boats. Still learning like everyone else. Here are some quick releases to replace corroded aluminum junk.

Edited by bacho on Jan 13, 2021 - 07:29 AM.

--
Greenville SC

Offering sails and other go fast parts for A-class catamarans
--
james89

Rank: Lubber

Registered: Jan 13, 2021

Last visit: Jan 13, 2021

Posts: 1
Posted: Jan 13, 2021 - 08:09 AM

That's very nice. What made you get into 3D printing? Once in a while I see threads and news about 3D printed tech and parts, but I don't really know much about it. Any suggestions how to get started or what is worth reading about it?

--
www.timeo.co.uk
--
samc99us

Rank: Mate

Registered: Apr 15, 2005

Last visit: Feb 21, 2024

Posts: 574
Posted: Jan 14, 2021 - 09:30 AM

bachoIm printing parts in PETG and Carbon PETG for my boats. Still learning like everyone else. Here are some quick releases to replace corroded aluminum junk.

Edited by bacho on Jan 13, 2021 - 07:29 AM.

Bacho, any chance of sharing those parts? Did you find a source for the inserts?
bacho

Rank: Mate

Registered: Jun 17, 2011

Last visit: Sep 24, 2023

Posts: 783
Posted: Jan 20, 2021 - 07:42 AM

I had to make it all. 1/4 stud in a 3/8 cylinder. All 316ss.

Drilling and tapping the 3/8 rod would be a real challenge by hand IMO.

--
Greenville SC

Offering sails and other go fast parts for A-class catamarans
--
waiex191

Rank: Mate

Registered: Oct 07, 2020

Last visit: Feb 29, 2024

Posts: 359
Posted: Jun 24, 2021 - 02:38 PM

We found some Hobie mainsail batten tensioner ends on thingiverse and printed up a bunch. We also designed the luff end caps for the main, plus tensioners and luff end caps for the jib battens.

Here are the caps we found on thingiverse:
https://www.thingiverse.com/thing:3162935

When my kid posts the other solid models I'll put the links up. Also, we found this tool for unlocking the cams:
https://www.thingiverse.com/thing:4606236

We have printed that tool and I'll try it out tonight.

--
Bryan in Poplar Grove, IL
Supercat 17, unknown year. Future project
Hobie 16, 1977 - died a spectacular death https://youtu.be/Y7O22bp2MVA
Hobie 16, 1978 - current boat
--
MN3

Rank: Master Chief

Registered: Jun 20, 2006

Last visit: May 22, 2024

Posts: 7089
Posted: Jun 24, 2021 - 04:38 PM

Quote Also, we found this tool for unlocking the cams:

not sure how that works - may be perfect

i used this one a few decades ago - it was perfect - still under $10

https://westcoastsailing.…t_usm87WWkgaAvm_EALw_wcB
