Trying set up "new" to me Miracle 20. Can't figure out how to set stock barber hauler. Can anybody post picture of such setup? Interested specifically where to attach jib blocks.
not sure if this helps but here it is on my mystere
motogon wrote: Trying set up "new" to me Miracle 20. Can't figure out how to set stock barber hauler. Can anybody post picture of such setup? Interested specifically where to attach jib blocks.

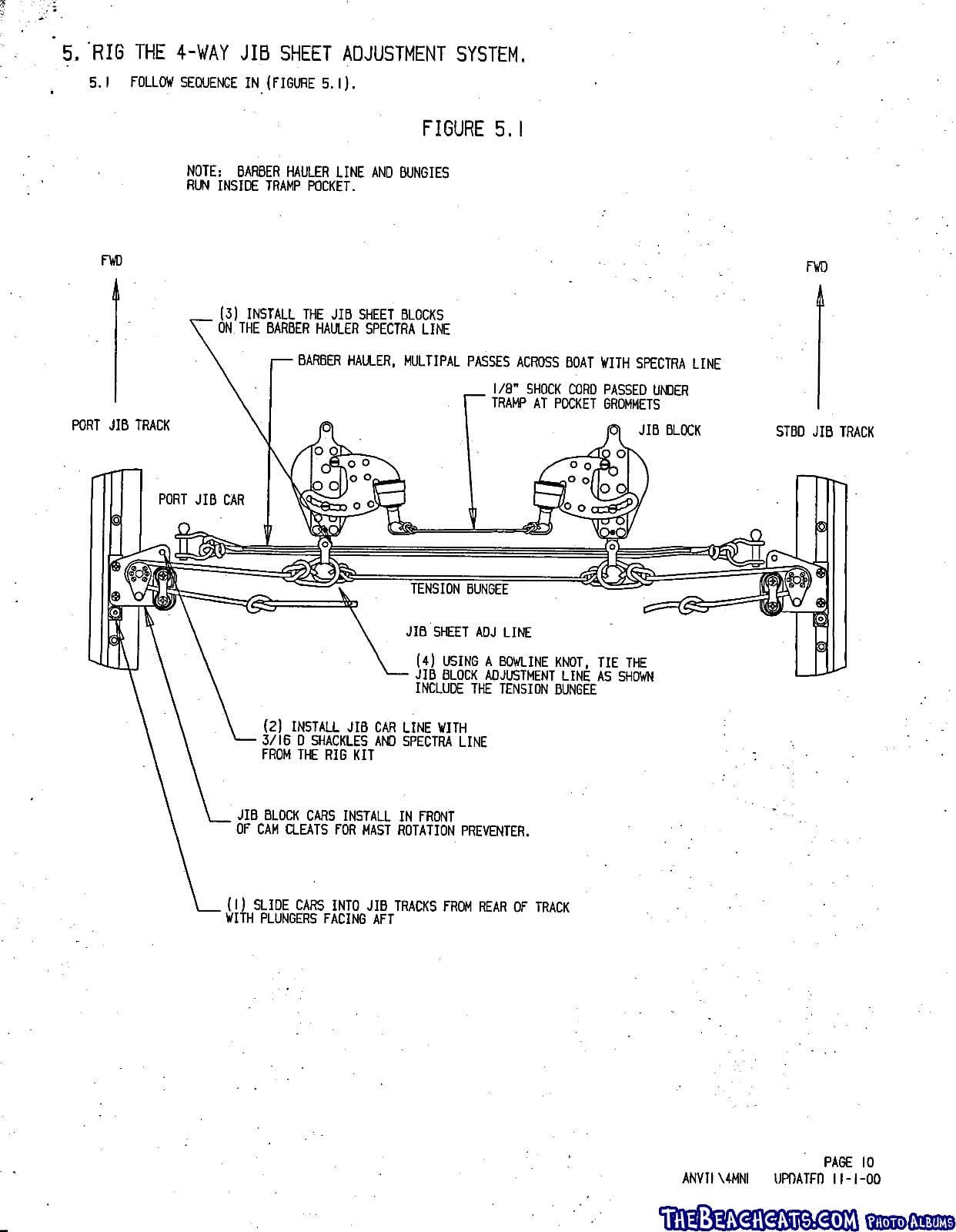

Similar to MN3's setup. Here's a link to the Hobie 20 assembly manual, the "4 way jib system" is explained on page 10.
Pictures from a Hobie 20 would still be nice if anyone has them.
I have steel cable running between jib cars 1 and 2. Should I hook jib blocks 3 and 4 on that steel cable and attache bungee cord between them and run lines out to jib cars 1 and 2 as it shown on picture?
Nobody???
You have steel in place of multiple pieces of Spectra? Should be OK but I wouldn't want to have to crawl over it as your crew.
Hi Andrew,
I don't see a barber hauler in your diagram.
In this photo, the Barber Hauler is green:
http://www.thebeachcats.com/pictures/?g2_itemId=83790
What you have labeled barber hauler is really the jib block line to hold the blocks in place. Is this the steel cable you mention that will be replaced with spectra or similar?
A Barber Hauler is a block on your jib sheet between the sail and the jib blocks attached to a line that pulls the jib sheet outboard toward the front of the tramp, usually near the front crossbar. You use this going downwind to open the slot between the main and jib.
What your diagram shows as shackles under the jib blocks should be a small block to allow smooth movement along the cable or specrta line.
Edited by klozhald on May 18, 2012 - 04:43 PM.
klozhald wrote: I don't see a barber hauler in your diagram.
The Hobie 20 has kind of it's own version of a barber hauler, instead of redirecting the sheets like the traditional barber-hauler the Hobie 20 moves the entire jib block side-to-side (close or open the slot) as well as fore and aft with the jib traveler tracks. Thus the name "4-way jib sheet adjustment system".
Nasty setup for the crew, blocks and lumps everywhere. Between this mess and the daggerboards, shrouds, and trap wires it's "boat bite city".
I've now got the whole Hobie 20 assembly manual available as linkable images, as well as a three page tuning/sailing manual by Bob Curry.
http://www.thebeachcats.com/pictures/?g2_itemId=87142
motogon wrote: Trying set up "new" to me Miracle 20. Can't figure out how to set stock barber hauler. Can anybody post picture of such setup? Interested specifically where to attach jib blocks.
You should have a pocket in your tramp that the stainless wire goes through. You can put a plastic hose over top of the cable the width of the tramp pocket. Mount a jib block on each side, to the cable. Then put on the lines that control in and out movement of the blocks. When you put your jib sheets on make sure you put both lines of each side (2 part purchase) through the rings that control the barber hauler
